Brand Name : | Iter |
Model Number : | TC8365A |
Certification : | CE |
Payment Terms : | L/C,T/T,Western Union |
Supply Ability : | 1000 sets/ month |
Delivery Time : | 5-10 days |
TC8365A Brake Disc Cutting for Heavy-Duty Vehicles such as FAW, Dongfeng, Howo and so on
Feature
The TC8365A Brake Drum Boring Machine is a high-performance,
precision tool designed for heavy-duty commercial vehicles.
Its superior rigidity, automatic feed system, dual-surface boring
capability, and optional brake disc resurfacing make it a versatile
and cost-effective solution for professional truck and bus
maintenance workshops.
It Special for repelling brake drum of vehicles, optional for brake
shoe or hub-less brake drum, widely used in auto repair plant, bus
company transportation company & transportation department of large
enterprise, etc.
Tool post approaches work-piece fast & micro feed enables more
convenience.
Feeding in either direction & rapid up/down enables high
efficiency.
Super strong spindle structure makes boring elliptical
deform-able/surface hardened brake drum available.Applicable for
brake drum of various vehicles like FAW, Dongfeng, Howo, Steyr,
Hongyan, medium buses & vans, Fushun axle, Anhui axle.Handle
axle.York axle.BPW axle.Shuauana axle. etc
Technical data
Model | TC8365A |
Max.boring diameter | 650mm |
processing diameter | 200-650mm |
Rotating speed of workpiece | 25/45/80 r/min |
Feed | 0.16/0.25/0.4 mm/r |
Main motor | 1.5kw |
Overall diamensions | 1140*900*1600mm |
Packing diamensions | 1250*1040*1700 |
N.W/G.W | 950/980kg |

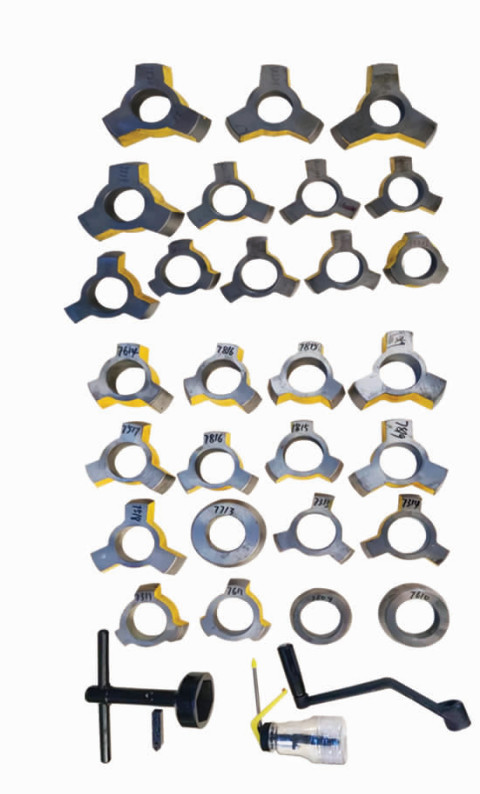

Detail:
![]() |
